- 100% Uudelleen suunniteltu kestävä alumiinirunko.
- Uudet, kestävämmät alumiinivanteet.
- Horst-linkun geometrian säätö flip-siruilla.
- Päivitetty geometria lisää käytännöllisyyttä.
- Tarkkaan valitut osat vastaamaan haluamaasi ajokokemusta, mm. Sramin uudet Maven Bronze jarrut valmiina.
FRAMESET

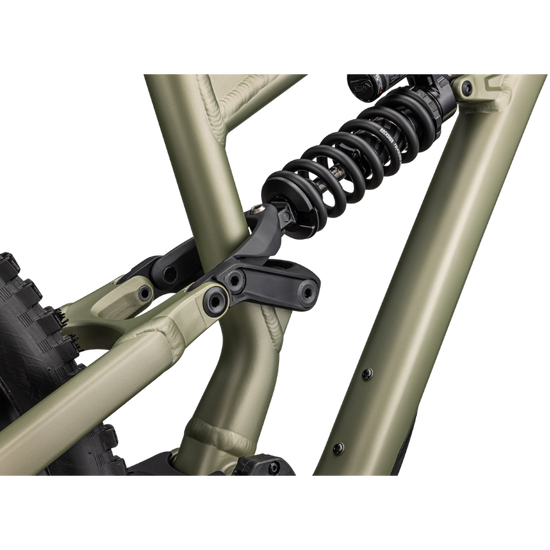

M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel
Alloy, 38.6mm
SUSPENSION
RockShox BoXXer 29, Charger 3 RC damper, adjustable low-speed compression, adjustable rebound, 20x110mm thru-axle, 44mm offset, 180mm of travel

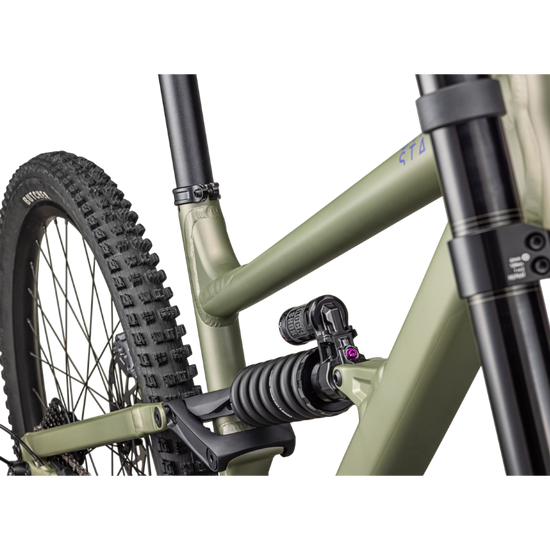

RockShox Super Deluxe Select Coil, external rebound adjust, hydraulic bottom out, 230x62.5mm
BRAKES
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm
DRIVETRAIN
SRAM DUB Threaded Wide
SRAM DESCENDANT DH, DUB, alloy, Direct, 34T ring, 55mm chainline, 165mm
SRAM GX DH, 7-speed, 11-24t
SRAM GX DH, 7-speed, trigger
SRAM GX DH, trigger, 7-speed
SRAM PC1110 w/ Powerlink™
WHEELS & TIRES
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Alloy, sealed cartridge bearings, 20x110mm, 28h
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
DT Swiss Industry
Roval Alloy DH, 28mm internal width, tubeless ready. Front: 29", 28H, Rear: 27.5", 32H
Standard, Presta valve

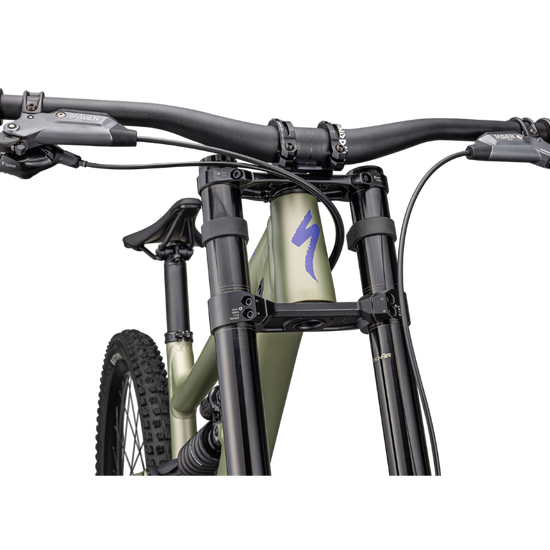

COCKPIT
Body Geometry Henge DH, hollow Cro-Mo rails, 130mm
Deity Lockjaw
Descendant 35mm Direct Mount Stem, 50mm length
Specialized 2-bolt head, forged alloy, 5mm offset, micro-adjust, 34.9mm
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S2: 780mm, S3-S5: 800mm
WEIGHT
17.18kg (37 lb, 14 oz)
S3
| Koko | Ajajan pituus |
|---|---|
| S0 | 144-157 |
| S1 | 150-160 |
| S2 | 157-173 |
| S3 | 165-180 |
| S4 | 173-188 |
| S5 | 178+ |
